B0024cartesian™ High Capacity Microarrayer

Next-generation versatile high-capacity microarray system for slide and plate printing.

B0024 Cartesian Microarrayer plate configuration

B0024 Cartesian is a versatile microarray system designed for slide and plate printing. Its configurable work area supports different labware arrangements for changing application requirements.

HIGHLIGHTS

- High-capacity Cartesian microarray system.
- User-configurable setups for slide and plate printing.
- Configurable work area for different labware arrangements.
- Multiple standard source and substrate configurations are available.
- Custom-developed options for specialized applications and labware requirements.

Plate Printing Configuration

Maximum plate capacity: 15 microplates. Any number of plates can be used as source plates.

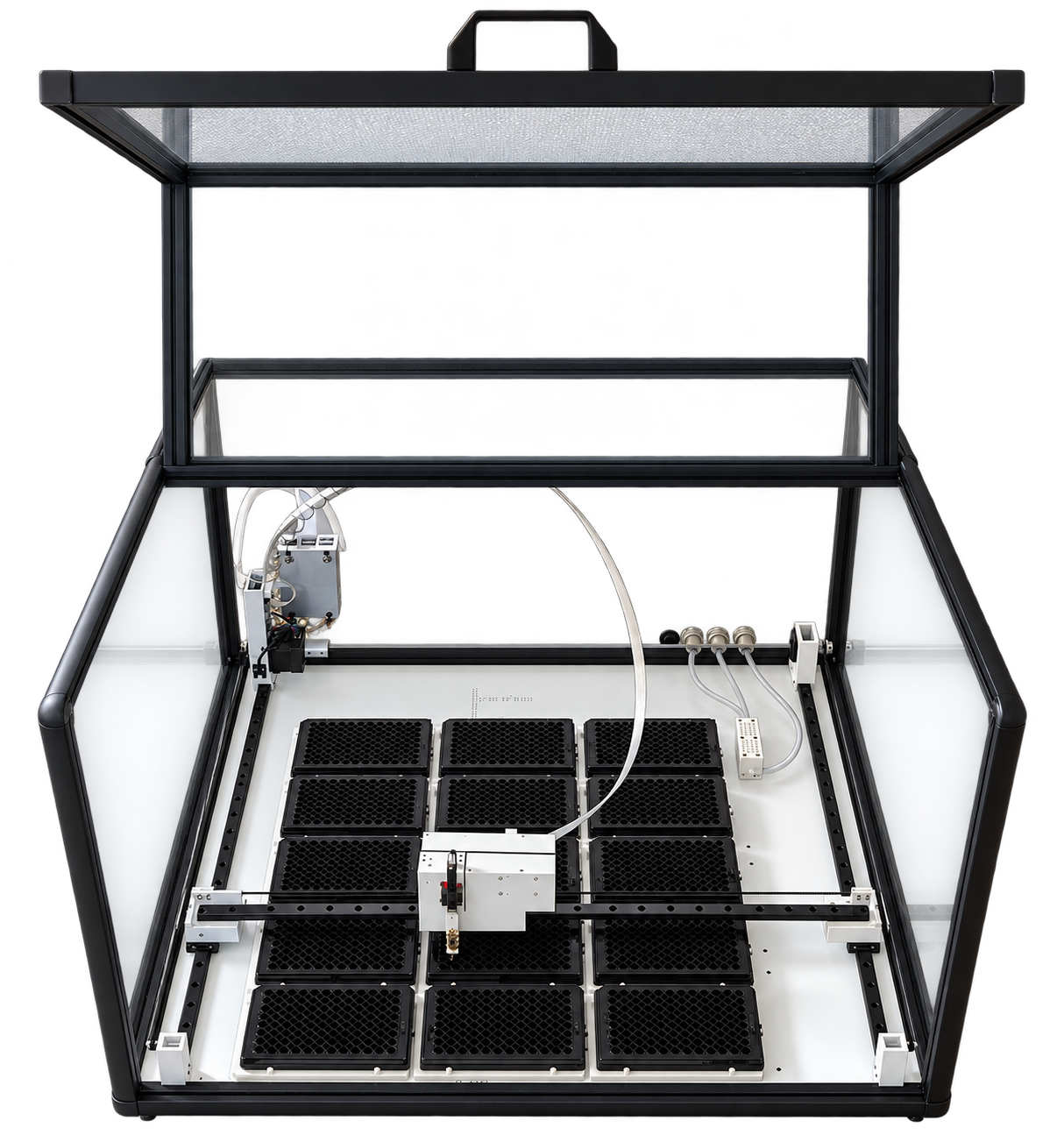

B0024 Cartesian plate printing configuration open

Slide Printing Configuration

Maximum slide capacity: 70 slides with independent locks and 1 source plate. Source plates can be added, taking the space of 5 slides.

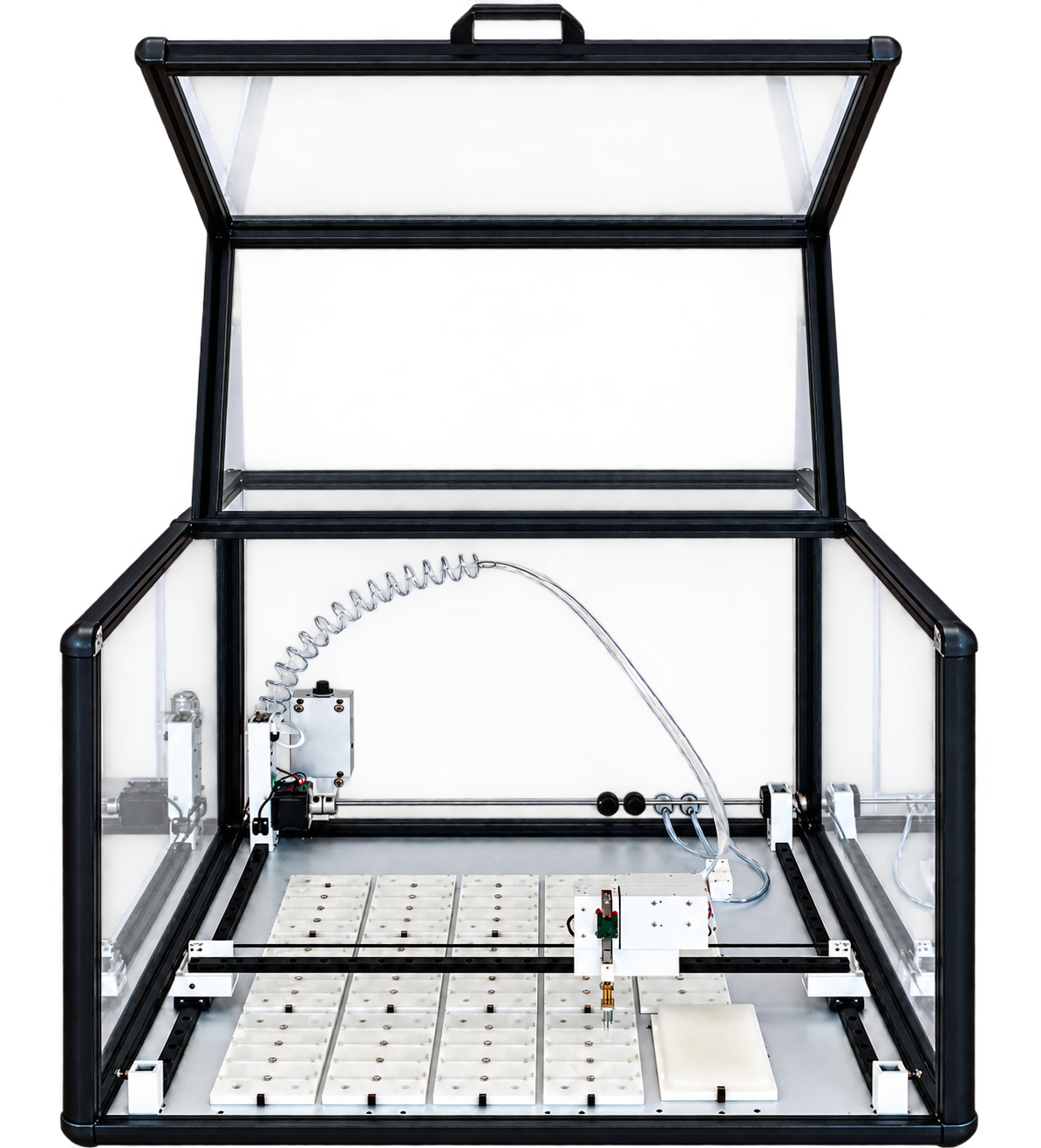

B0024 Cartesian slide printing configuration open

PRICING

Part Number Name Price Includes
B00-7210 B0024cartesian™ Microarrayer $27000 - Microarrayer
- 4 Xtend Pins (any diameter)
- 4-position print head (any configuration)
- 14 five-position slide holders or 15 plate holders, or any combination of slide and plate
  holders that fit into the work area
- 16-position washer and dryer (suitable for a 16-pin print head)
- Peristaltic Pump (dual head)
- Control Software
- Program Editor Software
- Monitor 10"
- Wireless keyboard and mouse
Options
B00-091 Microplate Cooling Option $900 - Microplate Cooling Holder
- Peristaltic pump (single head)
140 Humidification Option $600 - Electronic Humidifier
0296-16 16-pin print head $700 - 4 × 4 print head with 4.5 mm spacing
Custom Custom print heads up to 48 pins Request Quote - 4 × 12 print head with 4.5 mm spacing
- Matching washer/dryer station

* Indicated prices are for direct sales from LabNEXT US. On some markets LabNEXT sells only through distributors. Distributor prices may vary significantly. Please check our Order page for distributor list and other ordering information.

SPECIFICATIONS

Performance

- Printing Method: Contact printing with Xtend™ microarray pins. Custom heads for pins from other vendors are available.

- Number of printing pins: 4 standard. Up to 48 pins with print head upgrade.
- Microarray substrates capacity: 70 slides or 15 microplates.
- Source plates capacity: Up to 14 microplates.
- Source plate format compatibility: 96- and 384-well plates. Custom labware can be used.
- Slide locks: Independent. The system can accommodate from 1 to 70 slides in any position.
- Pins cleaning technology: Fluid stream washing, vacuum drying.
- Print layouts: Practically unlimited regular or irregular patterns.
- Sample Cooling: Cooling source plate holder (optional item).

Mechanical

- Accessible operating area: Width (X): 450 mm, Depth (Y): 480 mm, Height (Z): 50 mm
- Resolution: X, Y - 0.05 mm, Z - 0.05 mm (spacing between two nearest possible spots)
- Absolute accuracy: X, Y - 0.05 mm, Z - 0.05 mm. (accuracy of positioning the most remote from the origin spots within the work area)
- Repeatability within the same run: X, Y - 0.05 mm, Z - 0.01 mm (accuracy of returning to the same spot without run interruption.)
- Repeatability after run interruption: X, Y - 0.05 mm, Z - 0.05 mm (accuracy of returning to the same spot after the system has been stopped and re-initialized)

Environmental

- Dimensions: 26.4" × 26.4" × 17.7" (670 mm × 670 mm × 450 mm)
- Power supply: 110V-220V AC
- Lab facilities: Vacuum. Portable vacuum pump can be used. Pump performance L/Min(cfm): 25 (0.88)

DOWNLOADS

For product details, configuration options, and availability, please contact LabNEXT through the Order page.
